Pipe Fitting

• Application
• other, Water conveyance, agricultural, residential and industrial piping

• Bend Radius
• Not recommended for bending

• Coating Type
• Non-coated

• Color
• Grey

• Connection
• Other, Socketed / Solvent Cement Joint

• Connection Type
• Solvent Weld / Push Fit

• Diameter
• 20 mm - 315 mm

• Flexibility
• Rigid

• Length
• 3 meters & 6 meters standard lengths

• Material
• Other , Polyvinyl Chloride (PVC)

• Material Grade
• uPVC (Unplasticized PVC)

• Outer Diameter
• 20 mm to 315 mm

• Product Type

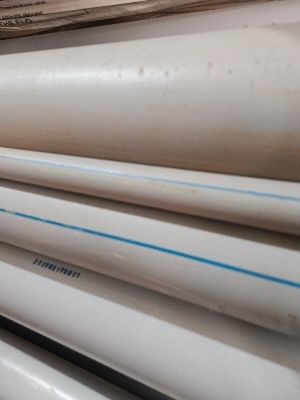

• Other, PVC Pipe

• Rated Pressure
• 2.5 to 16 kg/cm2

• Sealing Type
• Solvent cement sealing

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, IS 4985 / ASTM D1785

• Surface Treatment
• Other, Smooth finish

• Temperature Range
• 0C to 60C

• Tensile Strength
• 450 kg/cm2

• Thickness
• 2-8 mm (varies by specification)

• Thread Type
• Not Threaded (plain/smooth ends)

• Tolerance
• 1% on diameter and thickness

• Usage
• Water supply, irrigation, plumbing

• Yield Strength
• 400 kg/cm2

• Application
• other, Water supply, Drainage, Irrigation

• Bend Radius
• Not recommended for bending

• Coating Type
• None (Uncoated)

• Color
• White

• Connection
• Other, Push-fit / Solvent Weld

• Connection Type
• Socketed / Threaded

• Diameter
• 16 mm to 315 mm

• Flexibility
• Semi-Rigid

• Length
• 3 m / 6 m or custom

• Material
• Other , Polyvinyl Chloride (PVC)

• Material Grade
• UPVC (Unplasticized PVC)

• Outer Diameter
• 16 mm to 315 mm

• Product Type
• Other, PVC Pipe

• Rated Pressure
• 2.5 kg/cm2 to 10 kg/cm2

• Sealing Type
• Rubber Ring / Solvent Joint

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, IS 4985 / ASTM D1785

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• 0C to 60C

• Tensile Strength
• 40 MPa to 55 MPa

• Thickness
• 1.5 mm to 8.0 mm

• Thread Type
• Plain / Threaded ends

• Tolerance
• 2% of diameter

• Usage
• Plumbing, Agriculture, Industrial

• Yield Strength
• Minimum 45 MPa

• Application
• other, Plumbing, Water Supply, Irrigation

• Coating Type
• Uncoated

• Color
• White

• Connection
• Other, Threaded

• Connection Type
• Male Threaded

• Diameter
• 3 inch

• Flexibility
• Rigid

• Length
• 3 inch (76 mm)

• Material
• PVC

• Material Grade
• uPVC Schedule 40

• Outer Diameter
• 3 inch (76 mm)

• Product Type
• Other, Pipe plug

• Rated Pressure
• PN 6

• Sealing Type
• Pressure fit with rubber gasket

• Section Shape
• Round

• Shape
• Other, Round Plug

• Standard
• Other, IS:4985 / ASTM D1785

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• 0C to 60C

• Tensile Strength
• Minimum 450 kg/cm2

• Thickness
• 5 mm

• Thread Type
• BSP (British Standard Pipe)

• Tolerance
• 1 mm

• Usage
• Pipe sealing and termination

• Yield Strength
• >400 kg/cm2

• Application
• other, Water supply, Drainage system

• Bend Radius
• 90 Degree

• Coating Type
• Uncoated

• Color
• White

• Connection
• Other, Socket Weld

• Connection Type
• Push Fit

• Diameter
• 1 Inch

• Flexibility
• Rigid

• Length
• 50 mm

• Material
• Other , PVC (Polyvinyl Chloride)

• Material Grade
• UPVC (Unplasticized PVC)

• Outer Diameter
• 25 mm

• Product Type

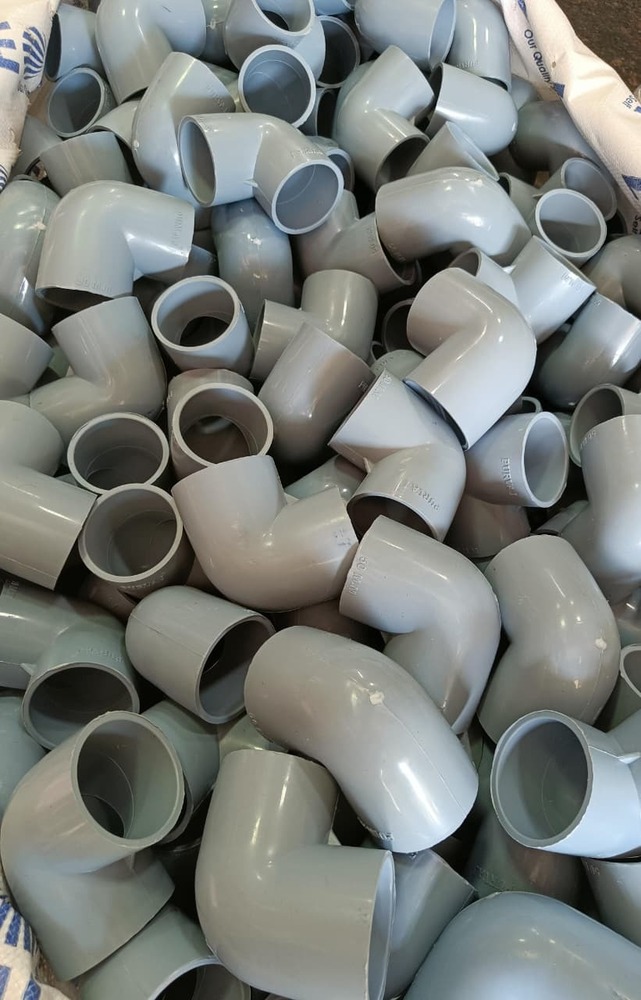

• Other, Pipe Elbow

• Rated Pressure
• 10 Bar

• Sealing Type
• Solvent Weld

• Section Shape
• Round

• Shape
• Other, Elbow (90 Degree)

• Standard
• Other, ASTM D2466

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• 0C to 60C

• Tensile Strength
• 40 MPa

• Thickness
• 4 mm

• Thread Type
• Non-Threaded

• Tolerance
• +/- 0.2 mm

• Usage
• Plumbing and Irrigation

• Yield Strength
• 45 MPa

• Application
• other, Pipe Fixing, Wall Mounting Support

• Color
• White

• Connection
• Other, Clamp/Fit

• Connection Type
• Snap-on/Clip-on

• Diameter
• 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 90mm, 110mm

• Flexibility
• Rigid

• Length
• Variable as per pipe size

• Material
• Other , PVC (Polyvinyl Chloride)

• Material Grade
• UPVC (Unplasticized Polyvinyl Chloride)

• Outer Diameter
• 15mm to 110mm (various sizes)

• Product Type

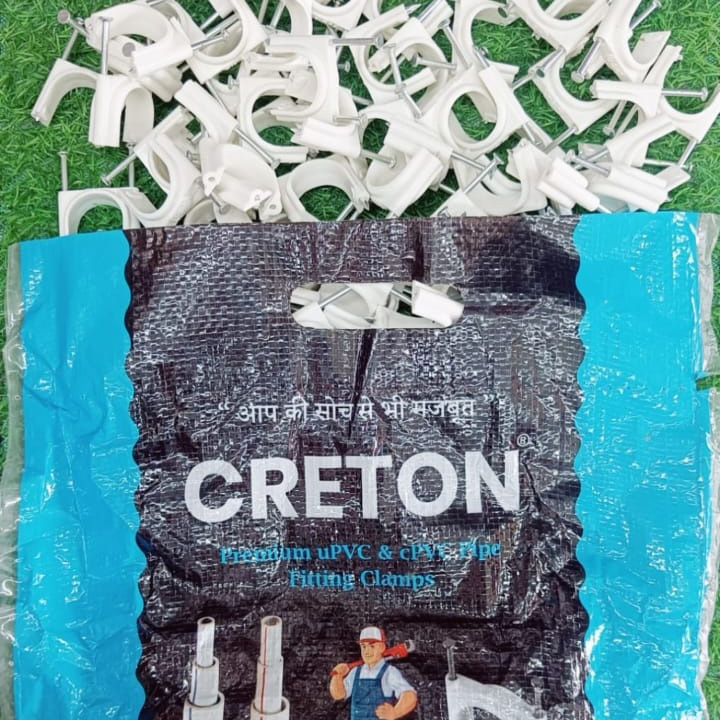

• Other, Pipe Fitting Clamp

• Rated Pressure
• 6 to 10 bar

• Sealing Type
• Non-Sealing Clamp

• Section Shape
• Round

• Shape
• Other, U-Shape

• Standard
• Other, ASTM D1785 / DIN 8061

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• 0C to +60C

• Tensile Strength
• 45 MPa

• Thickness
• 3 mm

• Tolerance
• 1mm

• Usage
• Plumbing, Water Supply, Drainage

• Yield Strength
• 35 MPa

• Application
• other, Domestic, Commercial, Sanitary Systems

• Bend Radius
• Flexible, minimum radius 5x diameter

• Coating Type
• Uncoated

• Color
• Grey

• Connection
• Other, Socket or Plain End

• Connection Type
• Push-fit/Solvent Weld

• Diameter
• 40 mm to 110 mm

• Flexibility
• Medium flexible

• Length
• 3 m, 6 m or customized

• Material
• Other , PVC (Polyvinyl Chloride)

• Material Grade
• Virgin PVC

• Outer Diameter
• 40 mm, 50 mm, 63 mm (varies by model)

• Product Type
• Other, PVC Suction Waste Pipe

• Rated Pressure
• Up to 4 Bar

• Sealing Type
• Rubber Gasket or Solvent Bonded

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ISI Standard

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• -10C to +60C

• Tensile Strength
• 380-400 kg/cm2

• Thickness
• 2-4 mm

• Thread Type
• N/A (Smooth end type)

• Tolerance
• 1% approx.

• Usage
• Waste Water Discharge, Drainage

• Yield Strength
• Approx. 300 kg/cm2

• Application
• other, Used in Faucets, Valves, and Bath Fittings

• Coating Type
• Electroplated Nickel

• Color
• Brass (Golden Silver Finish)

• Connection
• Other, Threaded

• Connection Type
• Male Threaded

• Diameter
• 16 mm

• Flexibility
• Rigid

• Length
• 110 mm

• Material
• Brass

• Material Grade
• CW617N / CZ122

• Outer Diameter
• 16 mm

• Product Type

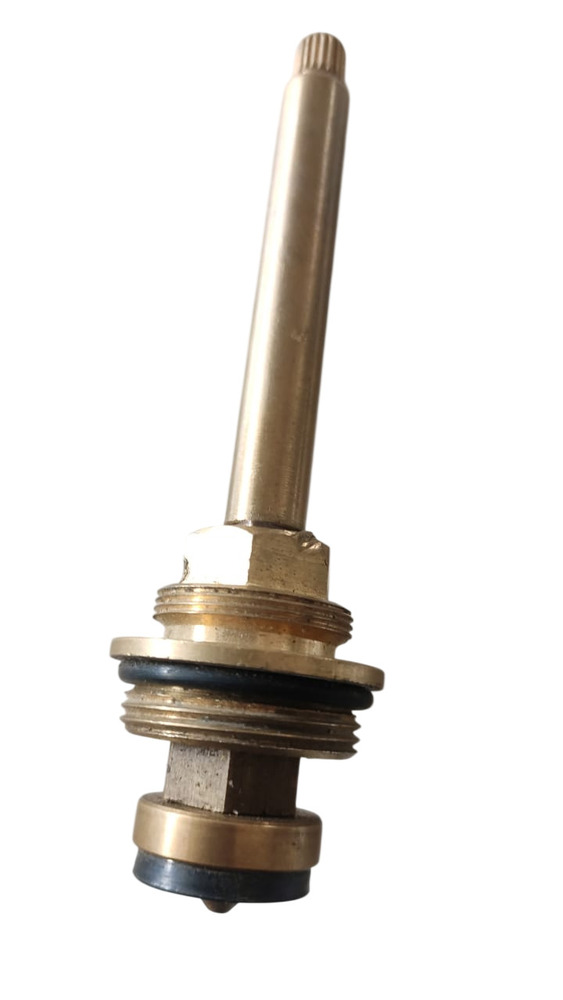

• Other, Concealed Spindle

• Rated Pressure
• Up to 16 bar

• Sealing Type
• O-ring Seal Compatible

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other, IS 319 / ASTM B16

• Surface Treatment
• Other, Nickel Plated

• Temperature Range
• -10C to 90C

• Tensile Strength
• >350 MPa

• Thickness
• 3 mm

• Thread Type
• BSP (British Standard Pipe)

• Tolerance
• 0.05 mm

• Usage
• Sanitary Fittings

• Yield Strength
• >200 MPa

• Application
• other, Water, Oil, Gas Pipeline Systems

• Bend Radius
• 75 mm

• Coating Type
• Anti-corrosive Coating

• Color
• Silver

• Connection
• Other, Welded or Screwed

• Connection Type
• Female Threaded / Flanged

• Diameter
• 3 Inch (approx)

• Flexibility
• Rigid

• Length
• 120 mm

• Material
• Other , Galvanized Steel

• Material Grade
• A105 / Mild Steel

• Outer Diameter
• 75 mm

• Product Type
• Other, Heavy Duty Elbow 90 Degree

• Rated Pressure
• 16 bar

• Sealing Type
• Gasket or Thread Sealant

• Section Shape
• Round

• Shape
• Other, Elbow (90 Degree)

• Standard
• Other, IS 1239 / ASTM A234

• Surface Treatment
• Other, Hot Dip Galvanized

• Temperature Range
• -20C to 150C

• Tensile Strength
• >410 MPa

• Thickness
• 4 mm

• Thread Type
• BSPT

• Tolerance
• 0.5 mm

• Usage
• Industrial Pipe Fittings

• Yield Strength
• >250 MPa

• Application
• other, Commercial Catering, Hotels, Restaurants

• Bend Radius
• Fixed

• Color
• Silver

• Connection
• Other, Welded/Threaded

• Connection Type
• Threaded/Socket Weld

• Diameter
• 25 mm

• Flexibility
• Rigid

• Length
• 400 mm

• Material
• Stainless Steel

• Material Grade
• 304 Stainless Steel

• Outer Diameter
• 25 mm

• Product Type

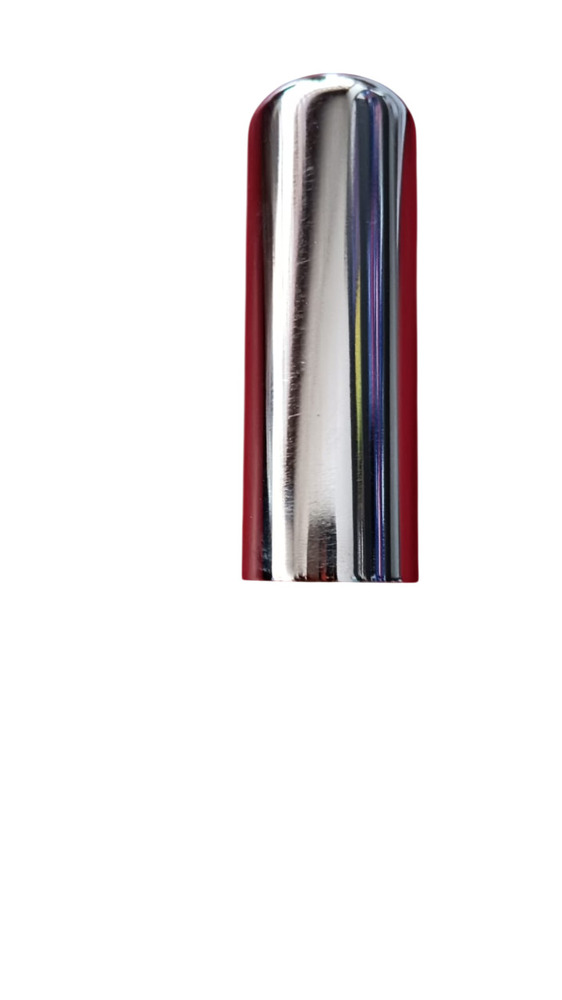

• Other, Chafing Dish Pipe Leg

• Rated Pressure
• Atmospheric

• Section Shape
• Other, Cylindrical

• Shape
• Round

• Standard
• Other, ASTM A240/A240M

• Surface Treatment
• Other, Polished Mirror Finish

• Temperature Range
• -20C to 100C

• Tensile Strength
• 520 MPa

• Thickness
• 1.2 mm

• Thread Type
• Metric

• Tolerance
• 0.2 mm

• Usage
• Chafing Dish Stand Leg

• Yield Strength
• 205 MPa

• Application
• other, Water Supply, Plumbing, Irrigation

• Coating Type
• Uncoated

• Color
• White

• Connection
• Other, Socket Weld

• Connection Type
• Slip Fit

• Diameter
• As per Pipe Size Specification

• Flexibility
• Rigid

• Length
• 55 mm

• Material
• Other , Polyvinyl Chloride (PVC)

• Material Grade
• UPVC, Grade 1

• Outer Diameter
• 20 mm - 110 mm

• Product Type
• Other, Pipe Coupling

• Rated Pressure
• 10 kg/cm2

• Sealing Type
• Pressure Sealing

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other, ASTM D2466 / SCH 40

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• 0C to 60C

• Tensile Strength
• 450 kg/cm2

• Thickness
• 3 mm

• Thread Type
• Non-threaded

• Tolerance
• 0.2 mm

• Usage
• Joining Two PVC Pipes

• Yield Strength
• 390 kg/cm2

• Application
• other, Plumbing, Irrigation, Water Supply

• Bend Radius
• Rigid - No Bending

• Coating Type
• Uncoated

• Color
• White

• Connection
• Other, Clip-on/Snap-fit

• Connection Type
• Push-fitting

• Diameter
• 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 63 mm

• Flexibility
• Rigid

• Length
• 50 mm

• Material
• Other , PVC (Polyvinyl Chloride)

• Material Grade
• UPVC

• Outer Diameter
• 20 mm to 63 mm

• Product Type
• Other, Pipe Clamp

• Rated Pressure
• Up to 6 bar

• Sealing Type
• Non-sealing

• Section Shape
• Other, Semi-circular

• Shape
• Other, U-Shape

• Standard
• Other, IS 4985 / ASTM D1785

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• -10C to +60C

• Tensile Strength
• 40 MPa

• Thickness
• 3 mm

• Thread Type
• Non-threaded

• Tolerance
• 0.2 mm

• Usage
• Pipe Fixing and Support

• Yield Strength
• 35 MPa

• Application
• other, Cold Water Plumbing, Agriculture, Drainage Systems

• Bend Radius
• Not bendable (Rigid Fitting)

• Color
• White, Grey

• Connection
• Other, Solvent Weld, Threaded

• Connection Type
• Push Fit, Socket Weld

• Diameter
• 1/2 inch to 4 inch

• Flexibility
• Rigid

• Length
• As per fitting type (typically 30 mm - 120 mm)

• Material
• Other , Polyvinyl Chloride (PVC)

• Material Grade
• uPVC (Unplasticized PVC)

• Outer Diameter
• 15 mm - 110 mm

• Product Type
• Other, PVC Fittings

• Rated Pressure
• PN10 (10 bar)

• Sealing Type
• Solvent Cement Joint

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Coupler, Adapter, Union, End Cap (as per image)

• Standard
• Other, ASTM D2466, IS 4985

• Surface Treatment
• Other, Smooth Uncoated Finish

• Temperature Range
• 0C to 60C

• Tensile Strength
• Minimum 45 MPa

• Thickness
• 2.5 mm - 6 mm (varies by size)

• Thread Type
• BSPT (for threaded ends)

• Tolerance
• 0.2 mm

• Usage
• Plumbing, Irrigation, Water Supply

• Yield Strength
• Approx. 40 MPa

• Application
• other, Water, Gas, Oil, Chemical Industries

• Bend Radius
• 1.5D

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• 50 mm

• Flexibility
• Rigid

• Length
• 120 mm

• Material
• Stainless Steel

• Material Grade
• SS304/SS316

• Outer Diameter
• 50 mm

• Product Type
• Other, Pipe Fitting Elbow

• Rated Pressure
• 16 Bar

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Elbow (90)

• Standard
• Other, ASME B16.9 / ASTM A403

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to +180C

• Tensile Strength
• 515 MPa

• Thickness
• 2.5 mm

• Tolerance
• 1 mm

• Usage
• Pipeline bending and direction change

• Yield Strength
• 205 MPa
